read moreLiquid chlorine tanker trailer for Sale
The complete composition includes a 20ft/40ft skeleton trailer, steel-made tanker, and steel frame that fixes the tanker onto the skeleton. To avoil leaking of gas, maximum tanker pressure will reach 1.1Mpa for safety operation. The tanker will be equipped with saftety valve, gas valve and liquid valve. Operation temperature will be minus 40 degree to 55 degree Cesius. The tanker surface will be specialy coated for corrossion prevention, maximum corrossion will reach 4mm. Ladder can be optional for inspection. The same technical setup can be used for other medium transportation such as LNP, LPG, etc.
Liquid chlorine tanker trailer Features
- Main frame made by high tension still with strong yield strength
- Tanker made by steel with anti-corrossion treatment
- Maximum operation pressure 1.5mpa
- Tanker fixed onto a skeleton trailer, with steel frames
- Various valves setup, safety valve, liquid valve, gas valve, etc.

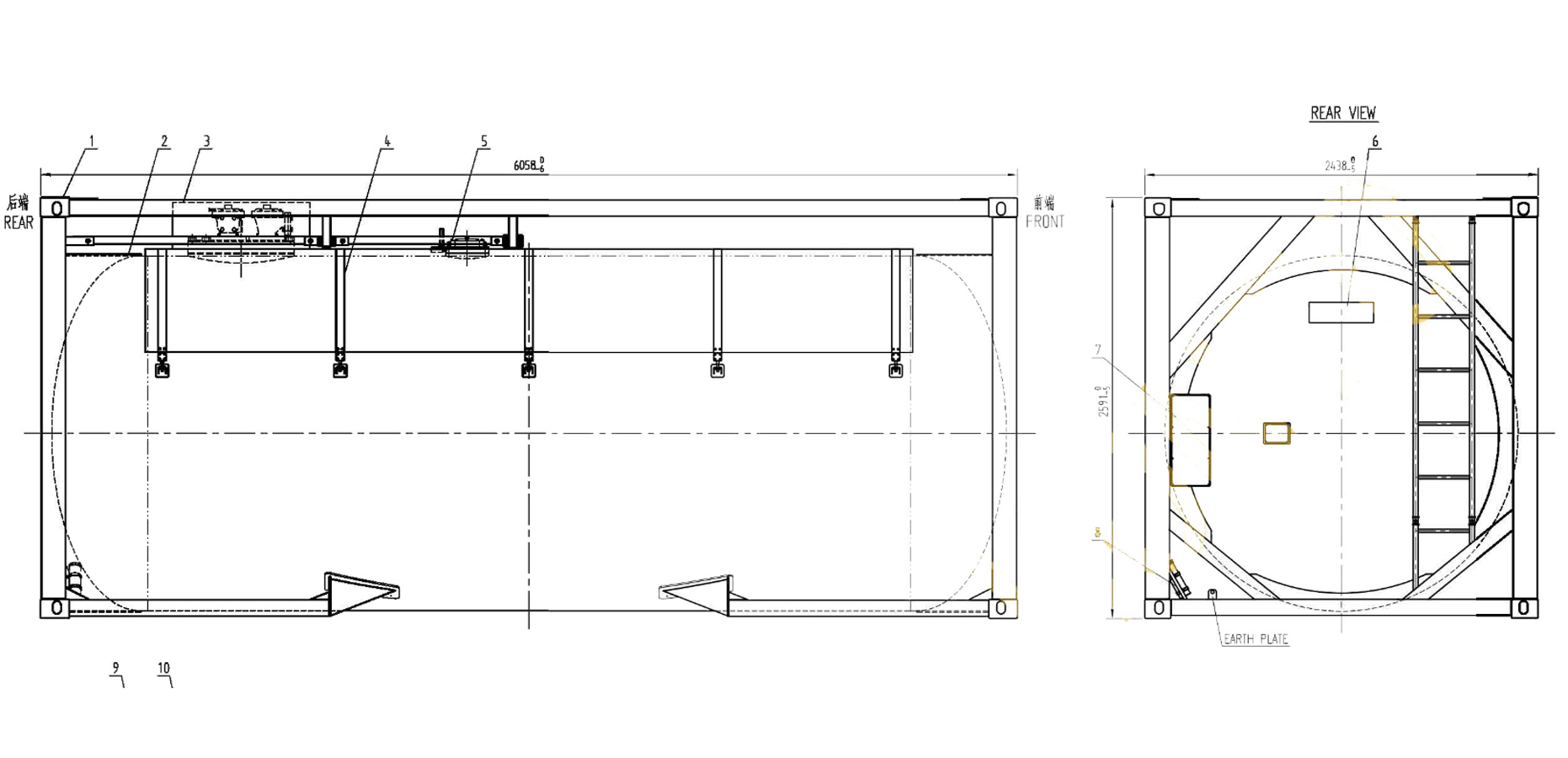

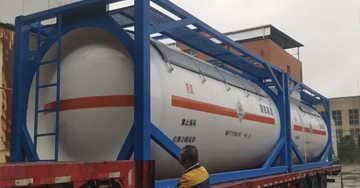

ISO liquid chlorine tanker trailer
B-double trailer specifications
- Name: ISO 20ft tanker trailer for liquid chlorine transportation
- Payload: 24200 KGS
- Frame dimension: 6058*2438*2591
- Axles: 13T per axle, 2 axles
- Suspension: Spring leaf suspension
- Tires: 11R/22.5 tires, 8 tires per trailer
- Frame: Q550/T700 high tension steel
- Kingpin: 2'' Kingpin JOST
- Landing gear: double speed JOST
- Spare tire carrier: 1~2
- Brake system: Wabco Dual line pneumatic brake line
- Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
- Tool box: 1 set
- Accessories: Optional
- Surface process: Sandblasted
- Designed pressure: 1.7Mpa
- Maximum allowed working pressure: 1.5Mpa
- Designed temperature: 60 degree Celsius
- Operating pressure: below 1.5Mpa
- Filling medium: Liquid Chlorine
- Corrossion allowance: 4mm
- Set pressure of relief valve: 1.724Mpa
- Leaking test pressure: 1.7Mpa
Photo Gallery
