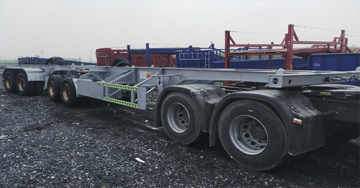

B-double trailer is comprised by two seperated trailer unit, each unit can be driven by trucks independently, while coulped together, total unit can be driven by only one prime mover. It provide much flexibility for cargo transportation. For each single unit, it can be designed for 20ft+20ft container transportation, or 20ft + 40ft, 40ft + 40ft, or customized by clients. Each units had complete setup of electric, mechnical, pneumatic system. 2 axles or 3 axles can be optioned. Suspension choice includes mechanical spring leaf type and air suspension. It's an ideal choices for port operation, or logistic company that requires maximum flexibility.

B-double trailer Features

• Main frame made by high tension still with strong yield strength
• When separated, each unit can be used independently
• When coupled, the unit can be driven by only one truck
• Various trailer size selection
• Various trailer type selection, dumper, flatbed, tanker, etc.
• Maximum flexibility for clients

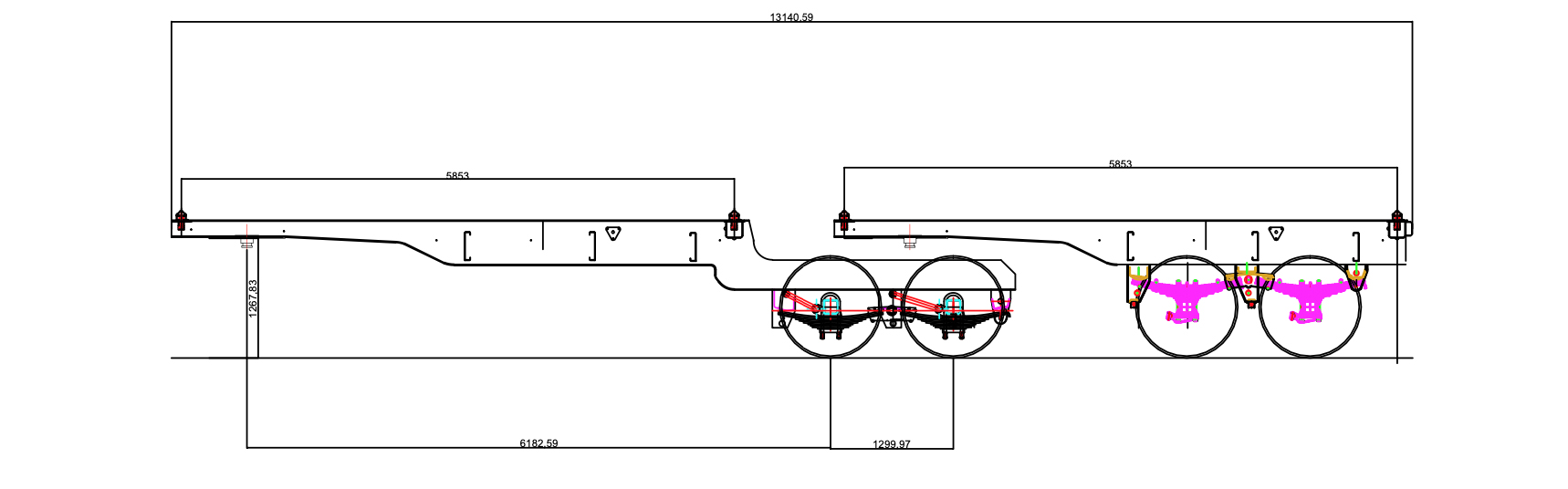

B-double trailer diagram
