read moreHydraulic trailer for mobile substation
This type of trailer is exclusively designed for mobile transformer substation trasportation. The hydraulic suspension system will buffer most of the bumping on the road, providing extra protection for transformer components. The hydraulic steering system also minimize turning radius, enable the semi-trailer to cope with various road condition. During operation, the trailer can steer automatically or manually, even by remote controller. It's also feasible to adjust trailer deck height manually, enabling the substation to surpass various height limiation. According to different substation size and weight, the trailer can adopts 3 axle lines, 4 axle lines and even more.
Hydraulic substaion trailer Features
- Main frame made by high tension still with strong yield strength
- Hydraulic suspension system to buffer bumping on the road
- Complete hydraulic circulation, securing flatness of trailer deck
- Hydraulic steering system, minimizing steering radius
- Adjustable trailer deck height

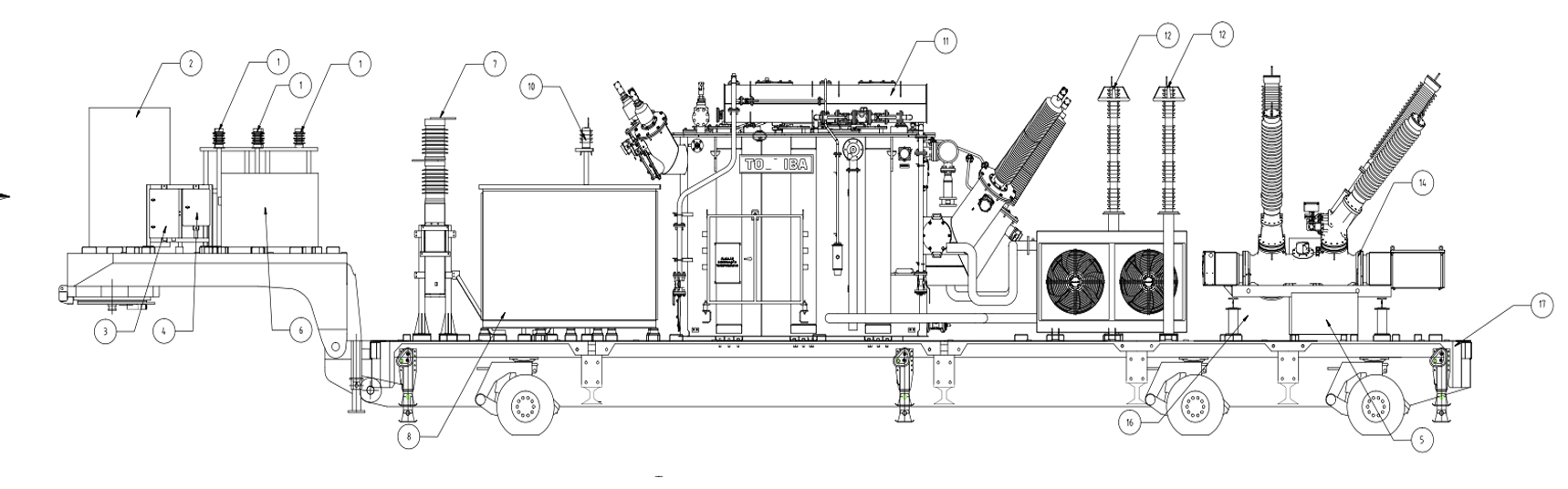

Hydraulic mobile substaion trailer Featuring diagram
Hydraulic mobile substaion trailer specifications
- Name: 3 axle line hydraulic steerig trailer for mobile substation
- Payload: 48 ton
- Overall dimension:18500*3200*1100mm
- Axles: 16T each axle line, single point bogie type
- Suspension: Hydrauli tire
- Tires: 215/75R17, 24 tires + 1 spare tire (Triangle, Chaoyang, Double Coin, Bridgestone, etc)
- Frame: Q550/T700 high tension steel
- Kingpin: 2'' Kingpin JOST
- Landing gear: double speed JOST
- Hydraulic system: Complete circulation
- Spare tire carrier: 1~2
- Brake system: Wabco Dual line pneumatic brake line
- Electrical system: 12/24V, 7 pin socket (US, EU or Australian standard)
- Tool box: 1 set
- Accessories: Optional
- Surface process: Sandblasted
- Painting: Base coating + Surface painting

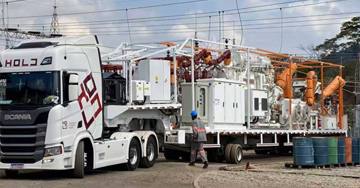

Photo Gallery
